Image Licensing : Boeing F / A-18F Super Hornet Cutaway Drawing

EDITORS COMMENTS

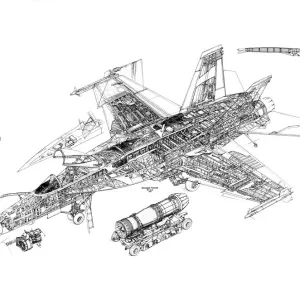

In this intricately detailed cutaway drawing, the complex engineering and advanced technology of the Boeing F/A-18F Super Hornet fighter jet are revealed. The F/A-18F, a twin-engine, multirole combat aircraft, is a derivative of the classic F/A-18 Hornet, which first entered service in the late 1980s. This cutting-edge military aircraft is used by the U.S. Navy and Marine Corps, as well as several international partners. The Boeing F/A-18F Super Hornet is designed to provide air-to-air and air-to-ground capabilities, making it a versatile and formidable asset for modern military operations. The jet's two General Electric F414-GE-400 engines are located at the rear of the fuselage, with the intakes positioned on the sides. The engines deliver a combined thrust of over 18,000 pounds, enabling the F/A-18F to reach speeds of over Mach 1.8. The jet's advanced avionics suite includes a multi-functional information distribution system, a helmet-mounted display system, and a digital radar system, which provide pilots with real-time information and situational awareness. The F/A-18F is also equipped with a versatile weapons bay, capable of carrying a variety of air-to-air and air-to-ground munitions, including the AIM-120 AMRAM and AIM-9 Sidewinder missiles, as well as the GBU-32 JDAM. The F/A-18F Super Hornet's robust design and advanced capabilities make it a reliable and effective platform for modern military operations. This cutaway drawing provides a unique and fascinating glimpse into the intricacies of the jet's design, revealing the intricate systems and components that make this aircraft an essential part of military aviation.
